Axonify stands out as the top choice for Charge Point Operators (CPO). With the growing need for eco-friendly transportation in corporate settings & Fast charging requirement on Highways, Axonify offers cutting-edge solutions to meet this demand & maximum uptime. Axonify also make charges with customizations as per charge point operators.
Axonify DC & AC Chargers are right solution for the CPOs:
1. ARAI Certified chargers.
2. Maximum Uptime.
3. Customized solutions.
4. 24 x7 Service support.
5. Compatible with all CMS.
6. One Stop Shop for the complete infrastructure.

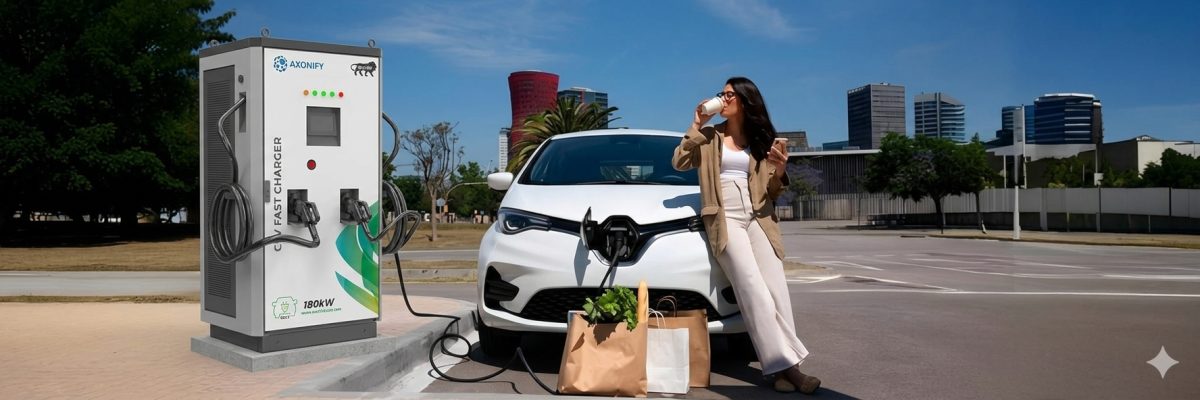

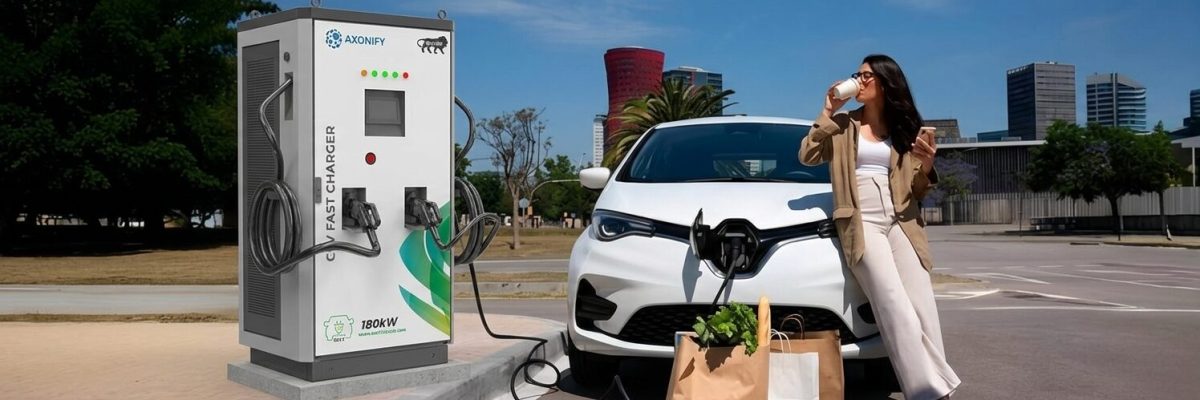

Atom Dc Fast Charger
Atom
Our DC Fast Charger is a super fast and commercially viable EV charging option, that ensures a super safe experience for public charging, open park spaces, bus stops, and more. It comes with a seamless payment gateway and supports single and multiple gun options.
- Compact Design
- Multi Gun Feature
- Digital User Interface
- Super Fast Charging
Capacity: 30 kW, 60 kW, 120 kW, 240 kW, 360 kW
Key Features
Our DC Fast Charger is our best EV Charging solution and supports easy and fast commercial and personal vehicle charging in commercial spaces.
Compared to other chargers, this EV Charger is available in two sizes, classic and standard, and can be installed as per the user’s requirement. The compact design ensures easy mobility in commercial spaces.
Design
7 inch LCD Display, state-of-the-art Hardware and IP54 Outdoor enclosure.
Safety
Safety first, with various protection features built-in for Surge, Ground Fault, Short Circuit etc. Meets Indian & International Charging Standards.
Payment Gateway
Hassle-free authentication using RFID & Mobile App. Secure payment options including UPI, Debit/Credit cards.
Super Fast Charging Simplified!
Our DC Fast Charger is the top-of-the-line EV Charger offering lightning-fast charging compared to our other chargers. This charger is compact and supports both personal and commercial charging. This charger takes much lesser time to charge your vehicle saving you a lot of time.
The product is designed keeping in mind different spaces and their EV charging requirements. Due to the super-fast charging, the viability of usage is extremely high in commercial spaces. This charger can be used with authentication via an RFID & Mobile App and comes with safe payment gateway options.
Highways
Public Parkings, Highway restaurants, Petrol pumps etc…
Commercial
Shops, Commerical buildings, Office buildings etc..
Public
Malls, Movie Theaters etc.
Technical Specification
Product Information
Input/output power rating and current
Three-phase: 30 / 360 kW Max
Socket outlet or connector type
Connector Type: CCS 2 Female plug with 5 M cable
Protection
Surge protection, Short circuit protection
Overload protection, AC overvoltage protection, under-voltage protection, Leakage protection, Insulation Monitoring
Input/ouput voltage
Three-phase : 415V nominal, 50Hz
Energy metering
Class 1
User Interface
Connectivity
Ethernet, Option for 4G, Wifi
User authentification
Mobile App or RFID card
Status indication
LED’s
User interface
7 inch
Configuration
Control and configuration
OCPP 1.6J (Optional)
Payment gateway
Secure payment options
including UPI, Debit/Credit cards.
User Interface
IP rating
IP54
Operating temperature range
-20…+55 °C
Dimensions
W x H x D(600 x 800 x 420 mm)
Storage temperature range
-30…+70 °C
Mounting
Wall or floor using a pedestal
Certification And Standards
Codes and standards
IS 17017-1
AIS-138 Part1
IEC 61851-1
IEC 62196-2
Want to Know More about our EV Charging Solutions?
Enter your details and we’ll get back to you shortly to discuss your charging needs.
Want to Know More about our EV Charging Solutions?
Enter your details and we’ll get back to you shortly to discuss your charging needs.
Charge Point Operators
Relish the convenience of a full battery whenever you need it with our hassle-free home chargers
Request a Callback
Smart network management
Overall management and control of the charging process and experience. Pair your chargers and integrate with another charger management system of your choosing.and energy use from anywhere on our app.
Access Control
Enjoy peace-of-mind by using the Atom EV app authentication.
Safety
Safety first, with various protection features built-in for Surge, Ground Fault, Short Circuit etc.
Payment Gateway
Secure payment options including UPI, Debit/Credit cards.
Our Products
Atom AC Destination Ev Charger
The Atom AC Destination Charger offers safe, fast charging for multiple vehicles in commercial spaces, featuring an LCD display, simple user interface, and ergonomic design for a seamless user experience.
- Compact Design
- Multi Gun Feature
- Digital User Interface
- High Quality
Atom Dc Fast Charger-30 kW
The Atom DC Fast Charger offers safe, fast charging for multiple vehicles in commercial spaces, featuring an LCD display, simple user interface, and ergonomic design for a seamless user experience.
- Compact Design
- Multi Gun Feature
- Digital User Interface
- High Quality
Atom Dc Fast Charger upto 120kW
The Atom DC Fast Charger offers safe, fast charging for multiple vehicles in commercial spaces, featuring an LCD display, simple user interface, and ergonomic design for a seamless user experience.
- Compact Design
- Multi Gun Feature
- Digital User Interface
- High Quality
Start your EV charging journey with Reliable Axonify's EV Chargers today!
Fill out the form below, and we’ll get in touch with you to discuss your unique EV charging needs.
We offer EV charging solutions to Indian and foreign customers of car companies, dealers, distributors, builders, and more
